Seasonal Water Feature

A 12-foot recirculating waterfall built to take a new face each season.

A 12-foot recirculating waterfall built as a freestanding arch that takes on a new face each season. Water pours from repurposed sprinkler nozzles in a copper pipe into a custom PVC tank below. The tank houses the pump and a float valve that tops off whatever evaporates. A cleanout valve on the back keeps the line serviceable. Two seasonal designs went in before I left.

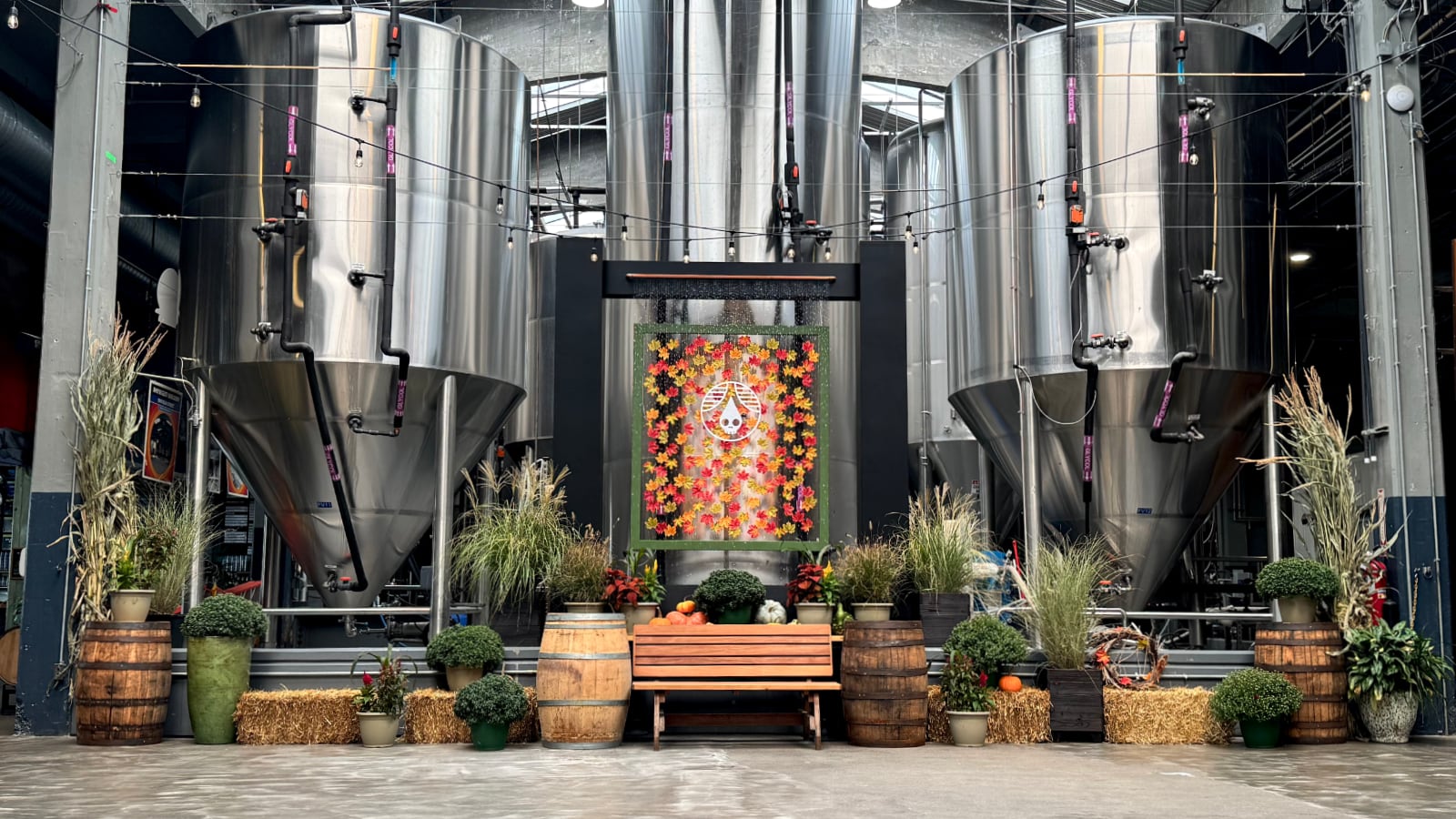

Fall dressing
Fall dressing

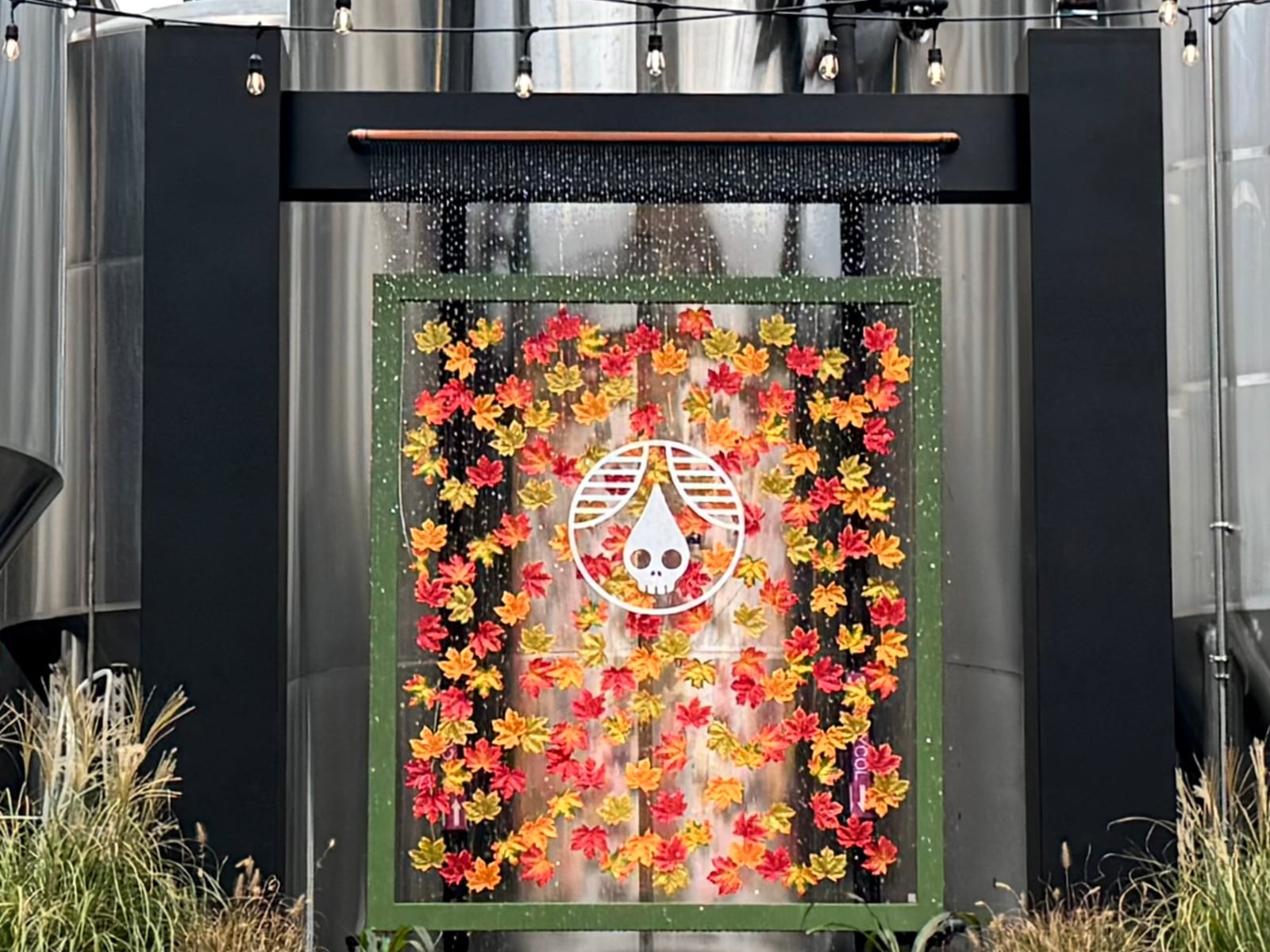

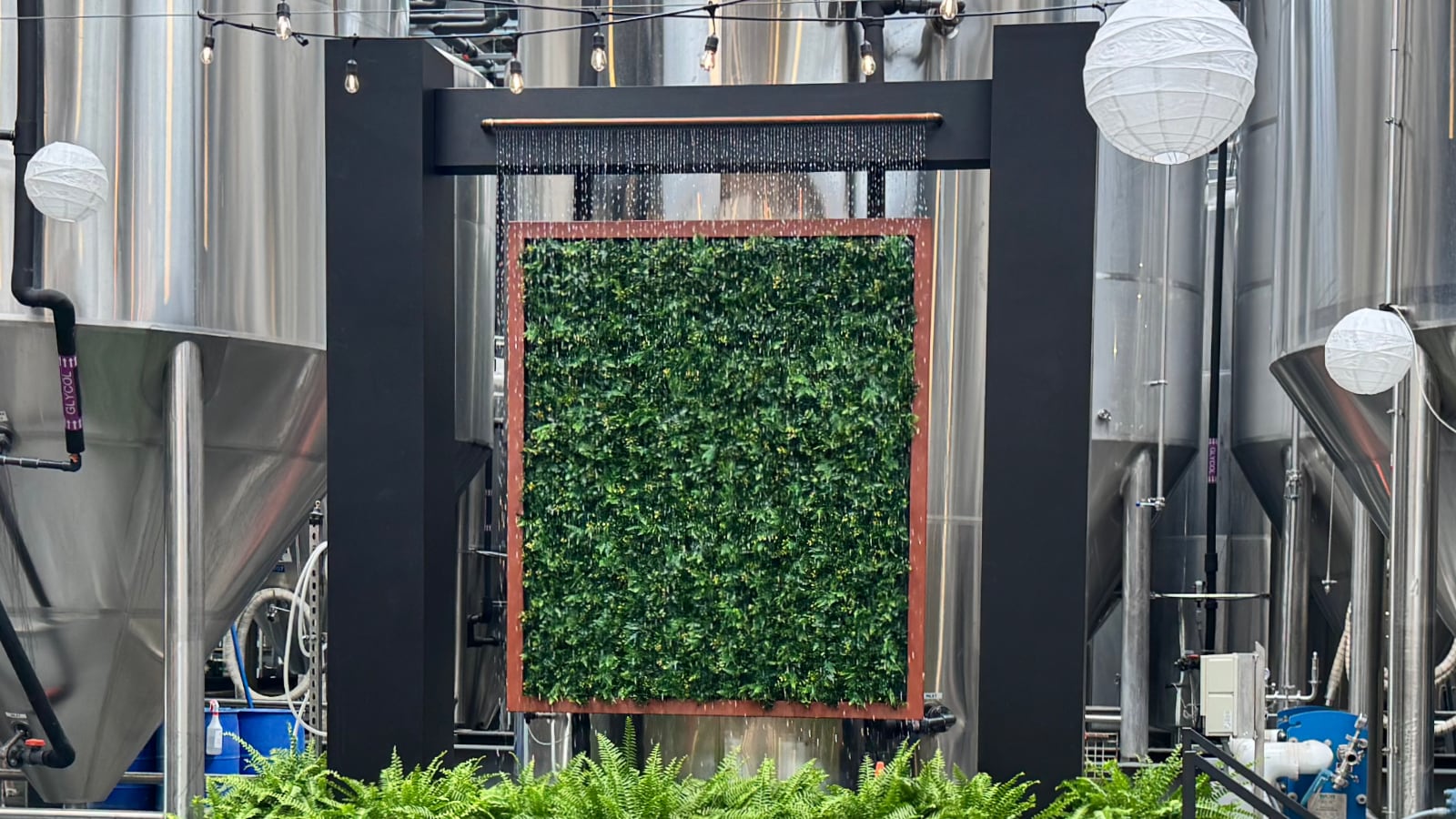

The spring version was a backed frame dressed in artificial foliage. The fall version was open, with monofilament strung top to bottom on 3D-printed hardware. The brewery logo was laser-cut from acrylic at the local library’s makerspace, then hung on printed mounts, leaving the negative space clear.

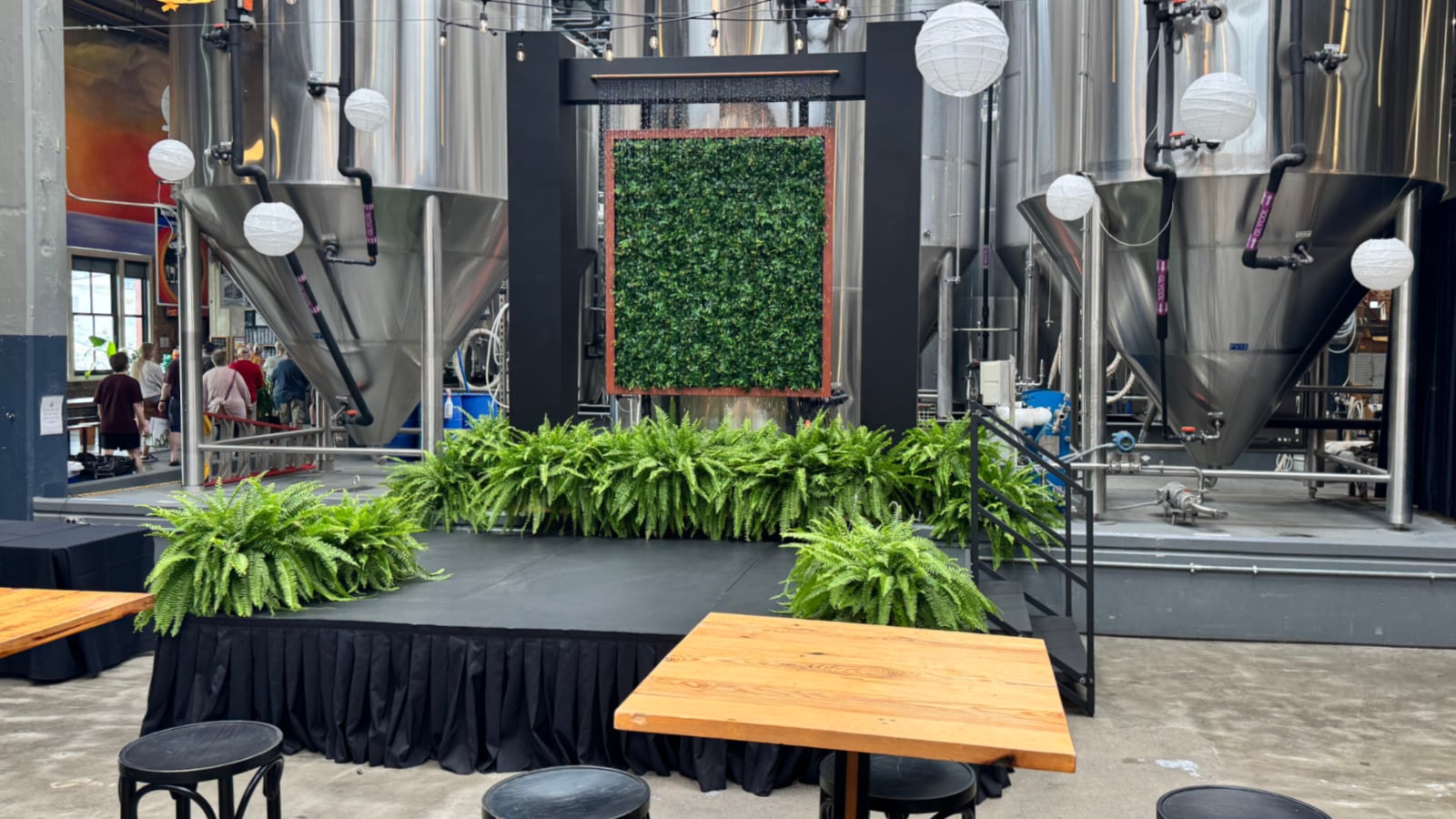

Spring dressing
Spring dressing

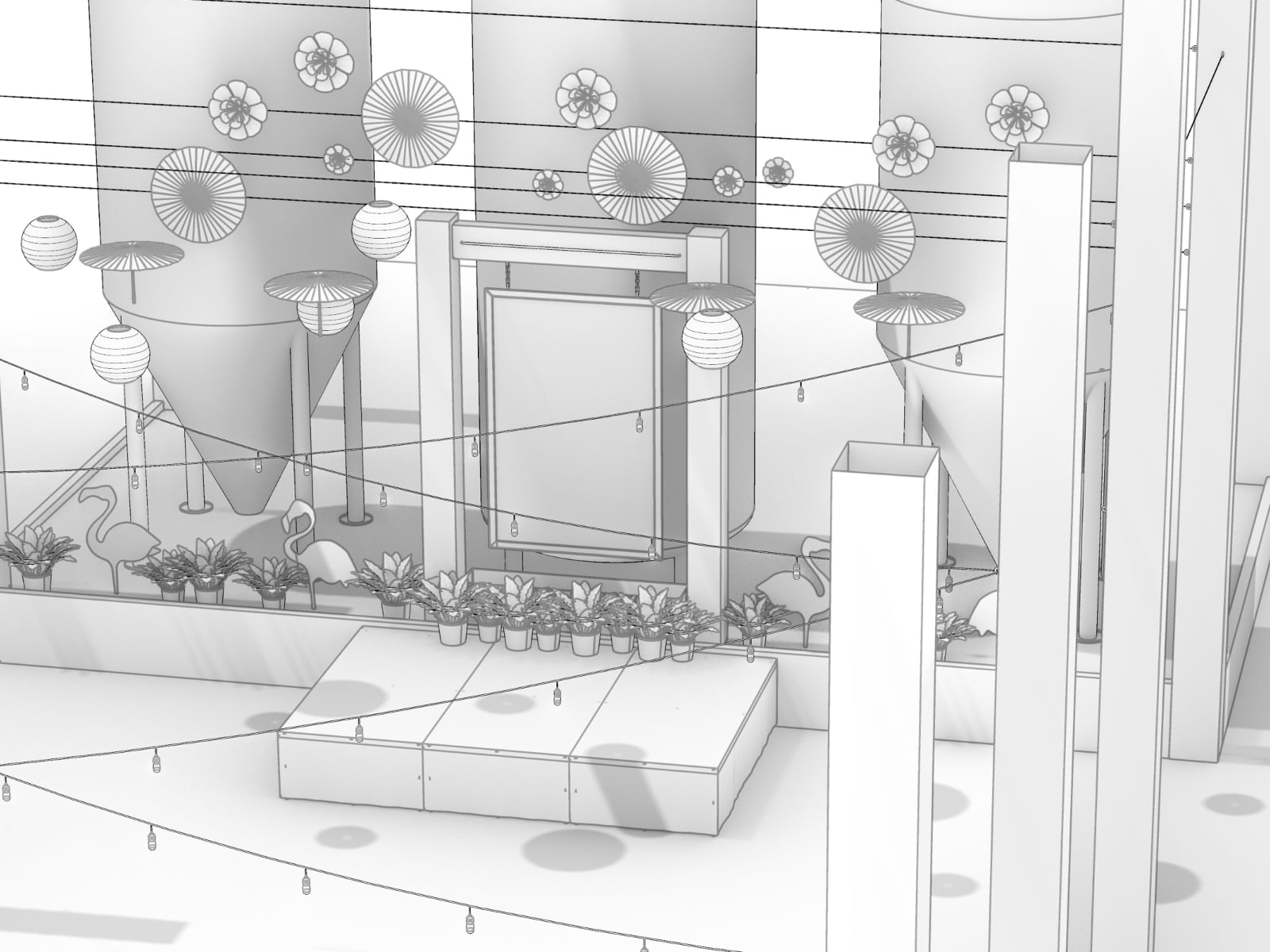

CAD render
CAD render of the spring dressing in the taproom
